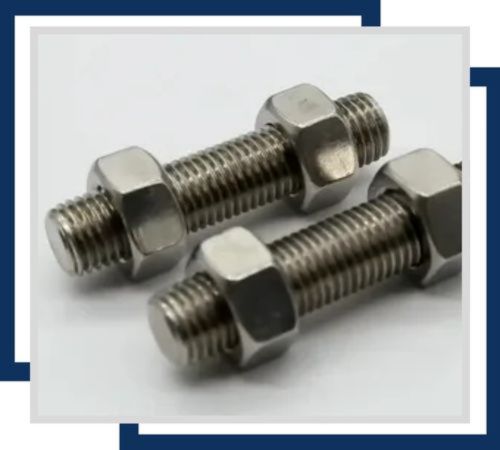

Amer Stainless, located in Amman, Jordan, stands out as a top manufacturer and supplier of premium stainless steel products. They focus on Stainless Steel 304L Stud Bolts, designed for exceptional corrosion resistance, impressive strength, and lasting reliability. Crafted under stringent quality standards, these stud bolts offer secure and durable fastening solutions for demanding industrial, chemical, and structural applications. Amer Stainless employs cutting-edge production methods and thorough quality control to guarantee that each stud bolt adheres to international specifications, ensuring precision, toughness, and consistent performance.
The composition of Stainless Steel 304L Stud Bolts includes iron, with 18–20% chromium, 8–10.5% nickel, and low carbon content. This lower carbon level enhances weldability, reduces sensitization, and provides excellent resistance to corrosion and pitting, all while maintaining mechanical strength and durability in tough environments.
| Specification | ASTM A 193/ASME SA 193 |
| Standard | all International Standards and ASTM, DIN, BS |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 550 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

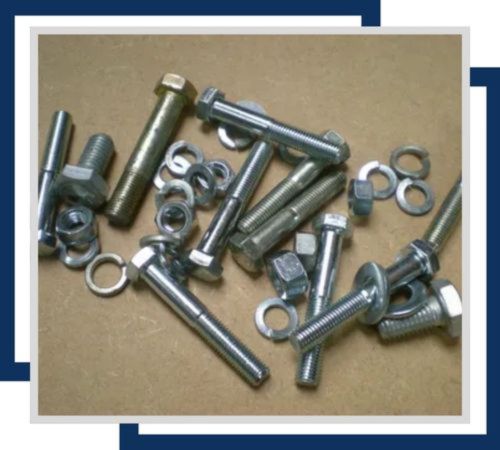

Stainless Steel DIN 1.4301 stud bolts offer exceptional strength and corrosion resistance. Designed for high-performance applications, they ensure durable and secure connections with precise threading and high-quality stainless steel.

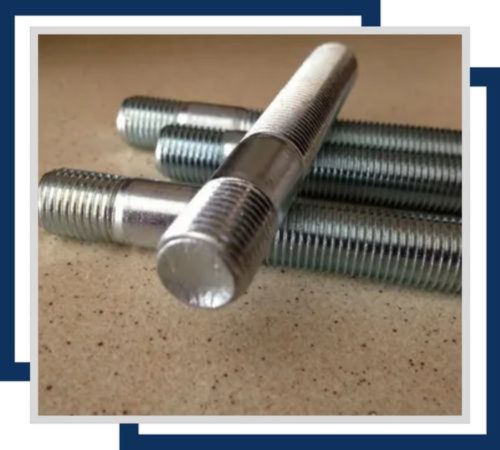

Stainless Steel UNS S30403 stud bolts provide outstanding durability and resistance to corrosion. Perfect for demanding applications, they offer secure, reliable connections with high-strength performance and precision threading.

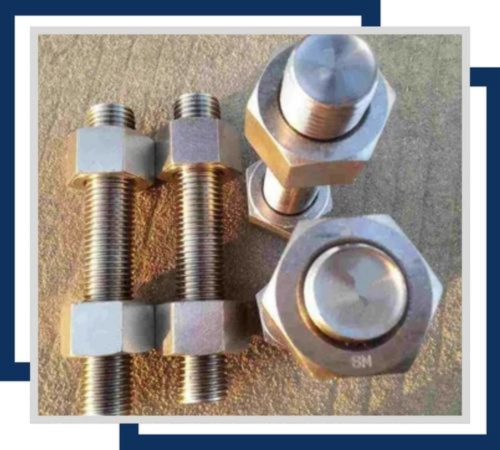

Stainless Steel 304L flush head stud bolts combine durability and sleek design, offering excellent corrosion resistance and strength. Their flush head allows for a clean, streamlined installation in tight spaces.
We assure the transparency of our Stainless Steel 304L Stud Bolts with the high quality assurance. All the orders are supplied along with relevant documents like a commercial invoice, packing list, fumigation certificate, heat treatment chart, and NABL-approved lab test report. We offer Material Test Certificates according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates. Detailed documentation is maintained in order to meet the satisfaction level of clients to the highest level.
These stud bolts find extensive use in chemical processing, petrochemical plants, power generation, marine, and general engineering sectors. Stainless Steel 304L Stud Bolts deliver maintenance-free performance, dependable fastening, and long-lasting durability even in high-temperature and corrosive conditions.
