Stainless Steel 314 Bars are top-notch materials designed for situations where outstanding heat resistance, corrosion resistance, and mechanical strength are a must. As a type of high-temperature austenitic stainless steel, these bars hold up beautifully even in extreme heat, making them perfect for use in furnaces, kilns, heat exchangers, and other high-temperature industrial equipment. They come in a variety of diameters, lengths, and finishes, making them versatile for fabrication, machining, and structural applications that demand reliability and precision.
The composition of Stainless Steel 314 Bars mainly includes iron, chromium, and nickel, along with small amounts of carbon and other alloying elements that boost their oxidation and high-temperature performance. Chromium is key for providing excellent resistance to corrosion and scaling, while nickel enhances toughness, ductility, and thermal stability. These bars are known for their high tensile strength, creep resistance, and dimensional stability, ensuring they perform well in environments that experience repeated thermal cycling and high temperatures.
Specification : ASTM A276, A479 / ASME SA276, SA479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
| Element | Content (%) |
|---|---|
| Iron, fe | Balance |
| Chromium, Cr | 19-26 |
| Nickel, Ni | 19-22 |
| Manganese, Mn | 2 |
| Silicon, Si | 1.5-3 |
| Carbon, C | 0.25 |
| Sulfur, S | 0.03 |
| Phosphorous, P | 0.045 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 689 MPa | 99900 psi |
| Yield strength | 345 MPa | 50000 psi |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Elongation at break (in 50 mm) | 40% | 40% |
| Hardness, Rockwell B | 85 | 85 |
Contact us to get a quick quote for your requirement.
We ensures that it provides the most excellent quality on Stainless Steel 314 Bars in terms of being tested and certification. Each and every bar passed through the high-quality mechanical, chemical analysis; tensile strength, hardness strength, corrosion testing, and with reports like a Mill Test Certificate, which verifies the industry specification and customer satisfaction.

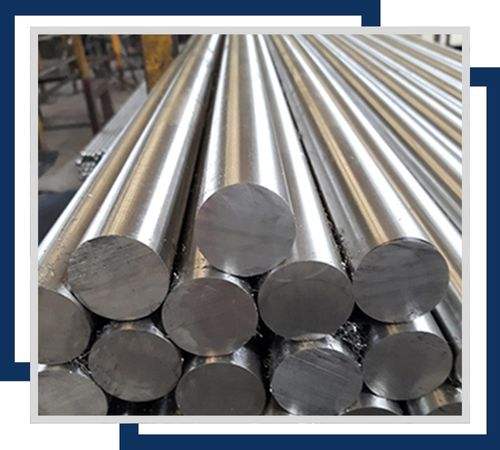

Corrosion-resistant and designed for high-temperature applications, Stainless Steel 314 Round Bars are available in diameters from 0.5″ to 12″. Ideal for use in industrial equipment and heat exchangers.

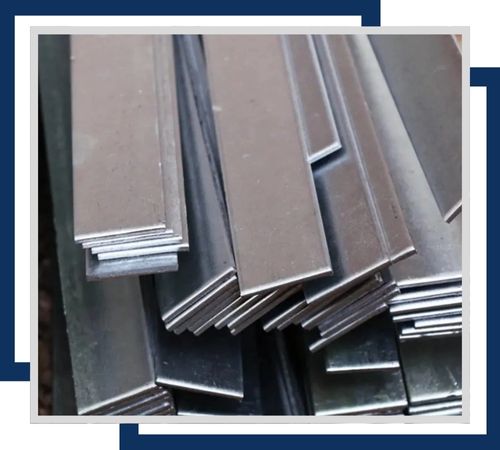

Stainless Steel 314 Flat Bars offer excellent resistance to high temperatures, available in thicknesses from 0.25″ to 6″ and widths up to 12″. Perfect for structural components and industrial uses.

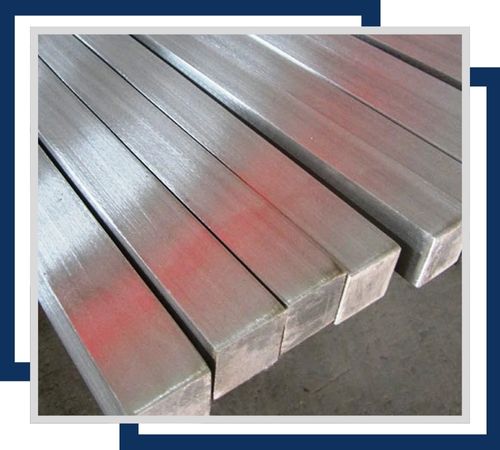

Featuring superior heat resistance, Stainless Steel 314 Square Bars come in sizes from 0.5″ to 6″ on each side. They are suitable for applications requiring high strength and thermal stability.

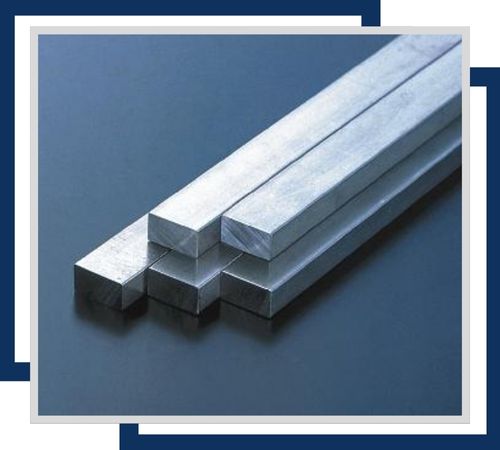

Stainless Steel 314 Rectangular Bars provide excellent high-temperature resistance, available in sizes from 0.5″ x 1″ to 6″ x 12″. Ideal for heavy-duty applications and components exposed to extreme conditions.
Offering exceptional heat resistance, Stainless Steel 314 Hexagonal Bars are available in sizes from 0.5″ to 4″ across flats. Suitable for aerospace and chemical processing applications requiring durable performance.

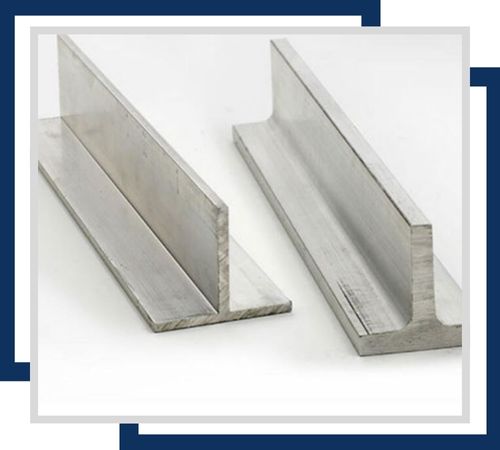

Corrosion-resistant Stainless Steel 314 T-Bars come in dimensions from 0.5″ x 0.5″ to 6″ x 6″. They are ideal for structural applications and machinery needing high-temperature strength and durability.
You’ll find Stainless Steel 314 Bars being used across various industries, including chemical processing, petrochemicals, power generation, aerospace, and high-temperature manufacturing. They’re particularly well-suited for creating furnace components, heat exchangers, kiln parts, and structural supports in high-temperature settings. With their impressive heat resistance, corrosion resistance, and mechanical durability, Stainless Steel 314 Bars are a dependable choice for challenging industrial and engineering applications.
