Stainless Steel 316L Fasteners are top-notch fastening solutions crafted for situations where outstanding corrosion resistance, strength, and long-lasting durability are a must. Being a low-carbon version of 316 stainless steel, these fasteners boast better weldability and a lower chance of carbide precipitation, making them perfect for tough and corrosive settings. They ensure secure and dependable fastening in marine, chemical, industrial, and structural applications. Even when faced with moisture, chemicals, and high temperatures, Stainless Steel 316L Fasteners hold their ground, guaranteeing reliable performance.
These fasteners are made up of iron, chromium, nickel, and molybdenum, with a low carbon content that boosts their resistance to corrosion and oxidation. Chromium acts as a shield against rust and oxidation, while nickel enhances toughness and mechanical stability. Molybdenum plays a crucial role in improving resistance to pitting and crevice corrosion, particularly in environments rich in chlorides, like seawater. With impressive tensile strength, durability, and resistance to stress corrosion cracking, these fasteners are well-suited for demanding industrial conditions.
| Stainless Steel 316L Fasteners Specification | |
|---|---|
| Specifications | ASTM A193, A276, F 593 – 98 / ASME SA193, SA276, F593 |
| Size | M02 to M33 |
| Length | 3 mm to 200 mm |
| Gasket Style | Style CG, Style CGI, Style R, Style RIR |
| Gasket Standards | ASME B16.5, ASME B16.47 SERIES A & B, BS 1560, BS 10, BS 4504 |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
| SS 316L | 0.035 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 16.0 – 18.0 | 10.0 – 14.0 | 2.0 – 3.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

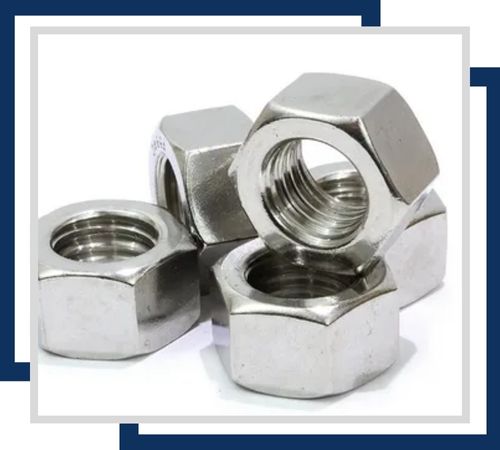

SS 316L Nuts provide exceptional corrosion resistance, particularly in chloride-rich environments. Available in sizes from M3 to M36 and larger, they are designed to fit standard nut profiles such as hex, square, and flange nuts.

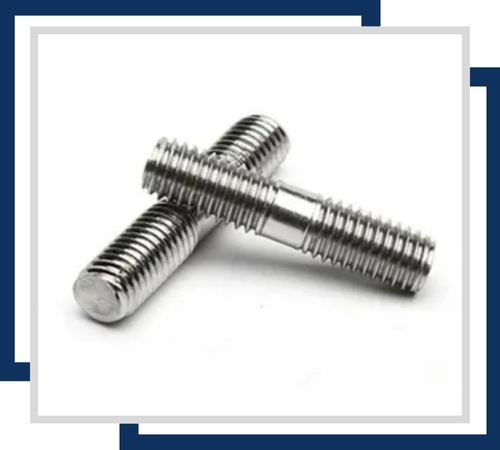

Stainless Steel 316L Stud Bolts Highly resistant to corrosion and stress corrosion cracking. Sizes generally range from M6 to M30, with lengths customized per application needs, available in both fully and partially threaded options.

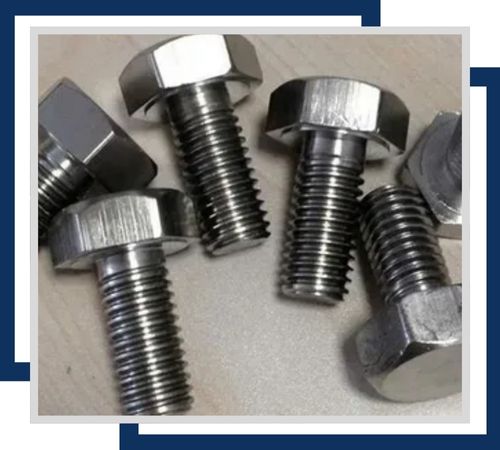

SS 316L Bolts offer Outstanding corrosion resistance, ideal for marine and chemical environments. Common sizes range from M6 to M36, with various lengths and head styles, including hex, socket, and carriage bolts.

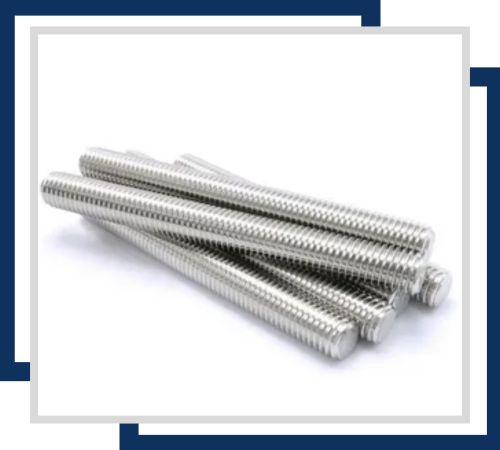

Superior corrosion resistance, suitable for harsh environments. Standard sizes include M6 to M36, with lengths typically ranging from 1 meter to 3 meters. Available in fully threaded or partially threaded versions.

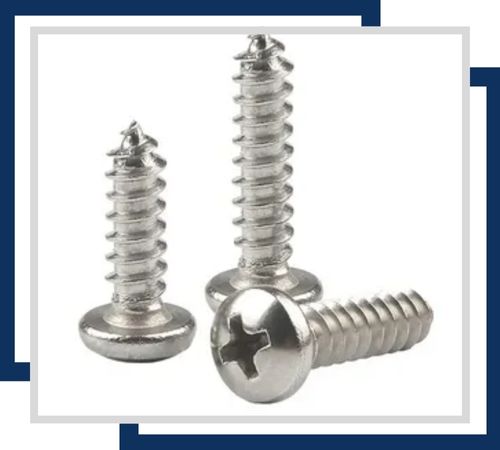

Excellent corrosion resistance, especially in saltwater environments. Available in sizes from M2.5 to M20, with various head types such as pan, flat, hex, and lengths tailored to specific applications.

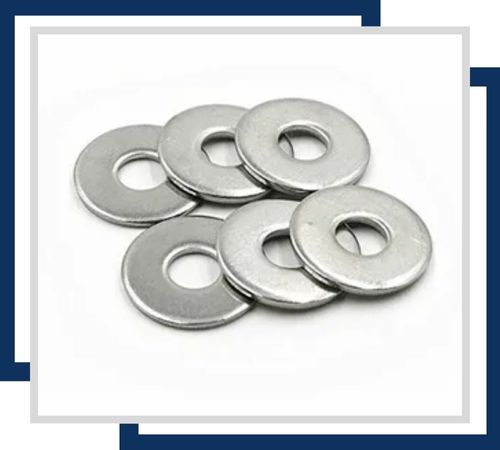

Great corrosion resistance, commonly used with 316L fasteners. Standard sizes range from M3 to M36, with various types, including flat, spring, and lock washers, suitable for distributing load and preventing loosening.
The SS 316L Fasteners undergoes quality inspection at all stages of production. The fasteners are made under the rigorous gaze of a high-quality control team that controls the entire process to even compromise failure at any point. Right from the first step till the very last, all the guidelines about the manufacturing of these fasteners are well followed. These fasteners are designed according to national and international quality parameters and have to face lengthy tests by our quality controllers for superior quality and high performance.
Stainless Steel 316L Fasteners find their place in various industries, including chemical processing plants, marine engineering, pharmaceuticals, food and beverage sectors, petrochemical facilities, and water treatment systems. They excel at securing piping systems, machinery, offshore structures, high-purity systems, and sanitary installations. Their hygienic properties make them a great fit for environments that prioritize cleanliness and corrosion resistance. With their blend of exceptional durability, corrosion resistance, and mechanical performance, Stainless Steel 316L Fasteners are a reliable choice for critical fastening needs across a wide range of industries.
