Stainless Steel 316Ti Flanges are top-notch piping components crafted for situations where outstanding corrosion resistance, high-temperature strength, and long-lasting durability are a must. Thanks to the addition of titanium, these flanges are resistant to intergranular corrosion, making them perfect for use in boilers, heat exchangers, chemical processing plants, and industrial piping systems that face harsh environments and elevated temperatures.
The makeup of Stainless Steel 316Ti Flanges includes iron, chromium, nickel, and titanium. Chromium is key for corrosion resistance, while nickel boosts toughness and ductility. Titanium plays a crucial role in stabilizing the microstructure, ensuring that the flanges maintain their mechanical integrity even at high temperatures. This combination results in flanges that boast impressive tensile strength, thermal stability, and creep resistance, guaranteeing secure, leak-proof connections in high-pressure and high-temperature settings.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| ELEMENT | MIN | MAX |
|---|---|---|
| C | – | 0.08 |
| Si | – | 0.75 |
| Mn | – | 2 |
| P | – | 0.45 |
| S | – | 0.03 |
| Cr | 16 | 18 |
| Mo | 2 | 3 |
| N | – | 0.1 |
| Fe | Balance | |
| Ni | 10 | 14 |
| Ti | 5x%(C+N) | |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 30TI flanges of superior quality test for best products and performance at an international standards level with due testing and full specification. Being a certified supplier, we certify every batch based on traceable documents. To make the modern products with no corrosion, robust, and quality mechanical properties to give you extra value, we used the modern world’s technology at a stringent and tight quality-control measure. Amer Stainless commits to deliver the highest level of flanges that could ensure functionality and safety.

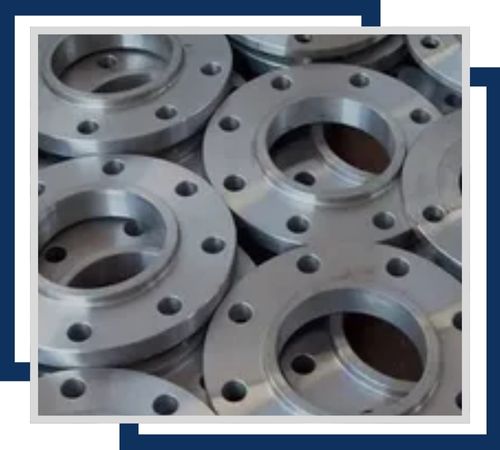

Featuring internal threads for easy attachment to pipes with matching threads, these flanges are typically available from 1/2″ to 6″. Their titanium content enhances corrosion resistance, particularly in aggressive chemical environments

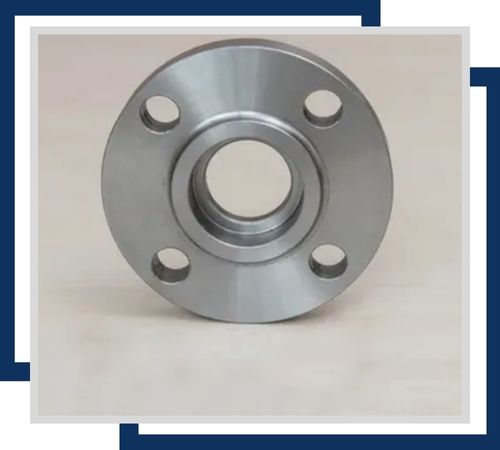

Designed for high-pressure systems, these flanges are inserted into a socket and welded in place. They come in sizes from 1″ to 24″ and offer robust corrosion resistance due to the 316Ti alloy’s resistance to oxidation and chloride stress.

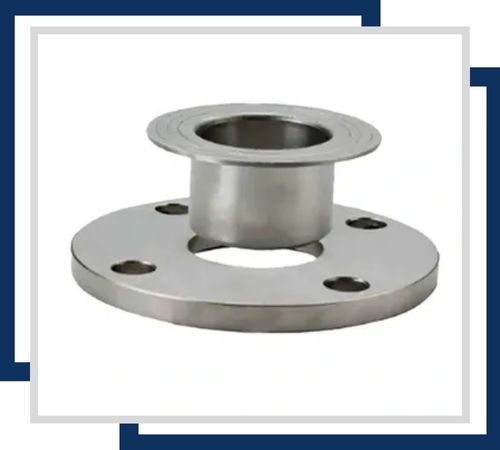

These flanges are used with a loose backing flange and provide a smooth, corrosion-resistant surface for easy alignment and maintenance. They are available in sizes from 1″ to 24″ and are highly resistant to rust and corrosion, suitable for various industries.
You’ll find Stainless Steel 316Ti Flanges in a variety of industries, including chemical, petrochemical, pharmaceutical, and food processing, as well as in seawater systems and high-temperature industrial pipelines. Their unique blend of mechanical strength, corrosion resistance, and heat tolerance means they deliver reliable and long-lasting performance. In short, Stainless Steel 316Ti Flanges are a durable, cost-effective choice for critical industrial, structural, and engineering applications.
