Stainless Steel 347 Tubing is a top-notch austenitic stainless steel product crafted for situations where outstanding corrosion resistance, high-temperature strength, and long-lasting durability are essential. Thanks to its stabilization with niobium, 347 tubing effectively combats intergranular corrosion, making it a perfect fit for boilers, heat exchangers, pressure vessels, and industrial piping systems that face extreme temperatures and harsh chemical environments.
The makeup of Stainless Steel 347 Tubing includes iron, chromium, nickel, and niobium. Chromium plays a key role in providing corrosion resistance, while nickel enhances toughness and ductility. Niobium, on the other hand, stabilizes the microstructure, ensuring mechanical integrity even at high temperatures. This tubing boasts impressive tensile strength, thermal stability, and resistance to creep, making it ideal for high-pressure and high-temperature applications.
| Specifications | : | ASTM A/ASME SA249/A269/A270 |
| Dimensions | : | ASTM, ASME, and API |
| SS 304H Tubes Size | : | 1/8″NB TO 30″NB IN |
| Thickness | : | 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |
| Finish | : | BA Finish inside and outside, Electropolished finish inside and outside |
| Type | : | Electropolished Pipes & Tubes |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| Length | : | Up to 6 meters, custom cut lengths |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We sets high standards regarding quality for stainless steel 347 tubing through multiple testing and evaluation procedures. Inspections are extensive and include determination of chemical compositions, mechanical testing, and testing by non-destruction methods on every product. Amer also offers full documentation in the form of Mill Test Certification.
Offering excellent corrosion resistance, Stainless Steel 347 Seamless Tubing is known for its uniformity and strength. It typically comes in sizes ranging from 6mm to 350mm in diameter and lengths of up to 6 meters. Ideal for applications requiring high pressure and corrosive resistance.
Stainless Steel 347 Welded Tubing provides superior resistance to chloride-induced stress corrosion cracking. Available in sizes from 10mm to 150mm in diameter and standard lengths of 6 meters. It is often used in industrial and chemical processing applications where weld strength is critical.

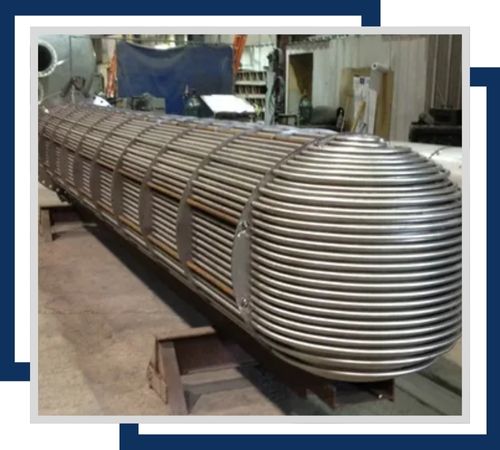

Featuring outstanding corrosion resistance, Stainless Steel 347 Heat Exchanger Tubes are used in demanding environments. Sizes typically range from 6mm to 50mm in diameter, with wall thickness varying from 1mm to 3mm. These tubes are designed for high temperature and pressure conditions.

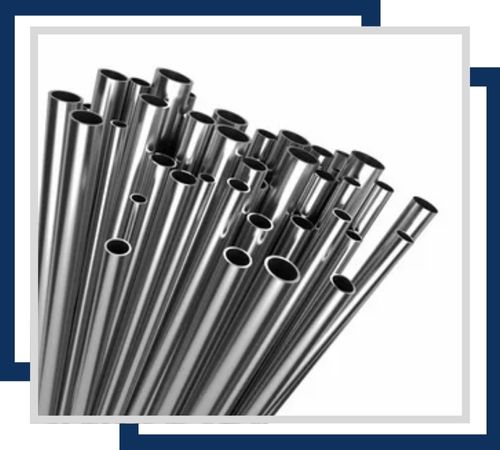

Stainless Steel 347 Instrumentation Tubing offers excellent resistance to corrosion and is ideal for precise measurement systems. Common sizes include 1/8″ to 1/2″ in diameter and lengths up to 6 meters. It is suitable for high-pressure applications and harsh environments.

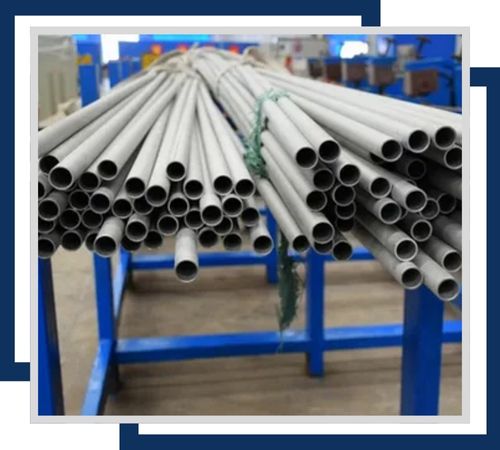

With superior resistance to both oxidation and corrosion, Stainless Steel 347 Boiler Tubes are used in high-pressure steam applications. Sizes typically range from 25mm to 100mm in diameter, with lengths of up to 6 meters. They are essential for maintaining efficiency in boiler systems.

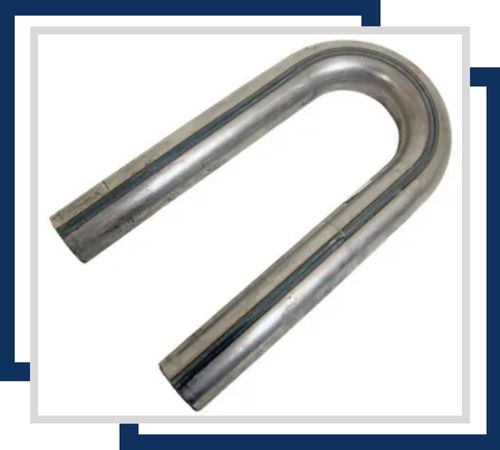

Stainless Steel 347 U-tubes provide excellent resistance to corrosive fluids and are commonly used in heat exchangers. Standard sizes range from 10mm to 100mm in diameter with various lengths. They are designed to handle thermal expansion and contraction in dynamic environments.

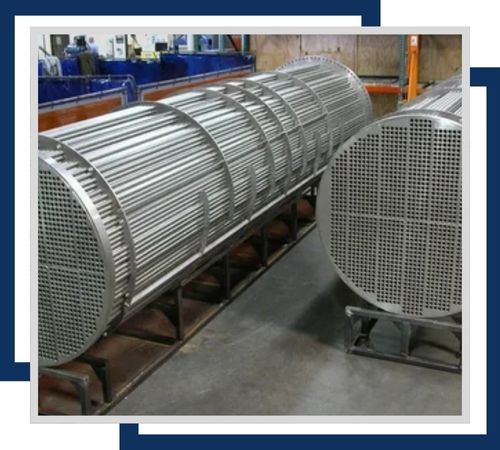

Stainless Steel 347 Condenser Tubes are used in marine and power generation applications, offering exceptional resistance to seawater and acidic environments. Sizes typically range from 10mm to 50mm in diameter and lengths up to 6 meters, providing durability and efficiency.

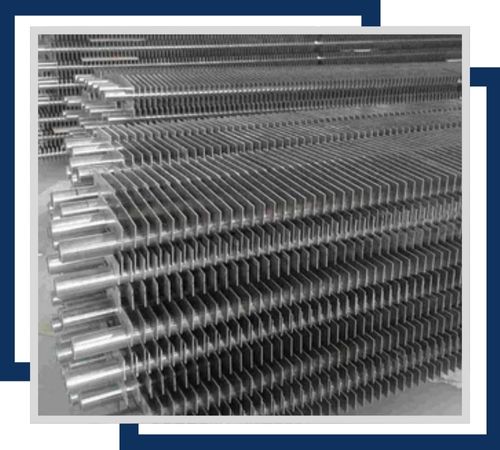

Stainless Steel 347 Fin Tubes are designed for enhanced heat transfer and corrosion resistance in air-cooled heat exchangers. They are available in various diameters, commonly 25mm to 50mm, with fin lengths customizable to specific requirements, ensuring effective cooling in challenging environments.
You’ll find Stainless Steel 347 Tubing in various sectors, including power generation, petrochemical industries, chemical processing equipment, and high-temperature industrial piping networks. Its blend of mechanical strength, heat resistance, and corrosion protection guarantees reliable and long-lasting performance. Stainless Steel 347 Tubing is a durable, cost-effective, and trustworthy choice for critical industrial, structural, and engineering needs.
