Stainless Steel 348 Nuts are top-notch fastening components crafted for situations where outstanding corrosion resistance, high-temperature strength, and long-lasting durability are a must. Thanks to titanium stabilization, these nuts effectively prevent intergranular corrosion, making them perfect for use in boilers, heat exchangers, pressure vessels, and other industrial systems where secure and dependable fastening is crucial.
These nuts are mainly made up of iron, chromium, nickel, and titanium. The chromium boosts corrosion resistance, while nickel enhances toughness and ductility. Titanium plays a key role in stabilizing the structure, ensuring it maintains its mechanical integrity even at high temperatures. With their impressive tensile strength, thermal stability, and resistance to creep, these nuts are well-suited for high-stress and high-temperature environments.
| Element | Content (%) |
|---|---|
| Iron, Fe | 66 |
| Chromium, Cr | 18 |
| Nickel, Ni | 10 |
| Manganese, Mn | 2.0 |
| Silicon, Si | 1.0 |
| Nb + Ta | 0.8 |
| Cobalt, Co | 0.2 |
| Tantalum, Ta | 0.1 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 655 MPa | 95000 psi |
| Yield strength (@ strain 0.200%) | 275 MPa | 39900 psi |
| Izod impact | 120 – 160 J | 88.5 – 118 ft-lb |
| Charpy impact | 160 J | 118 ft-lb |
| Shear modulus (typical for steel) | 77.0 GPa | 11200 ksi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 45% | 45% |
| Hardness, Brinell (converted from Rockwell B hardness) | 147 | 147 |
| Hardness, Knoop (converted from Rockwell B hardness) | 164 | 164 |
| Hardness, Rockwell B | 85 | 85 |
| Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Contact us to get a quick quote for your requirement.

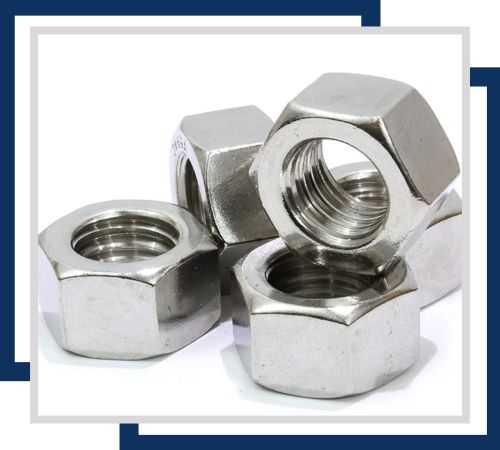

Stainless steel 348 nuts are ideal for high temperature applications. Available in sizes from M6 to M36, these nuts are highly resistant to corrosion and oxidation, making them suitable for nuclear reactors and chemical devices.

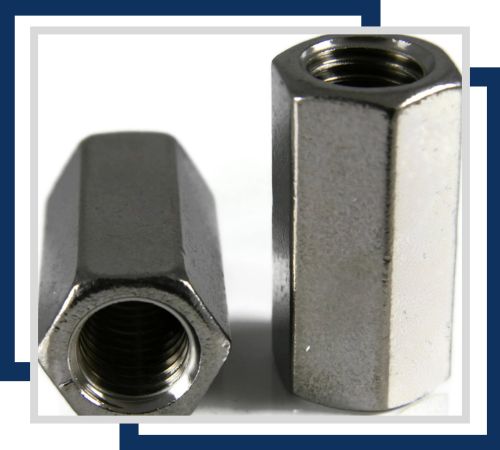

The stainless steel 348 coupling nuts are designed to connect threaded rods in harsh environments. Sizes range from M6 to M36, making them ideal for applications in hot and humid environments, such as medical plants and power plants

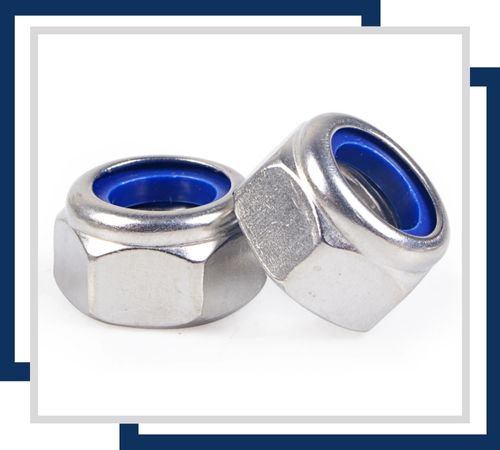

Stainless steel 348 nylon insert nuts have nylon inserts for secure fastening. Available in sizes from M6 to M24, they offer high thermal stability and resistance, suitable for use in aerospace and industrial equipment.

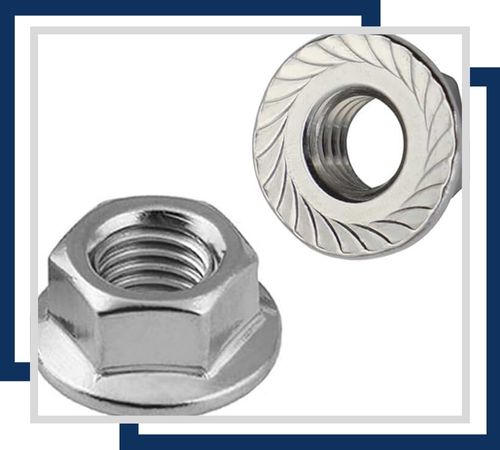

Stainless steel 348 flange hex nuts for enhanced weight distribution with integrated flanges. Available in sizes from M6 to M24, these panels are used in complex applications such as furnace components and heat exchangers, providing strong support.

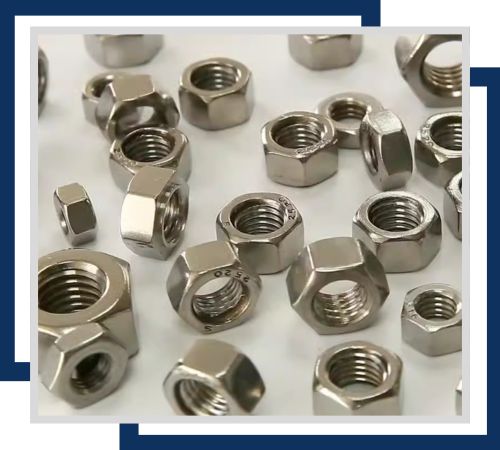

Heavy duty stainless steel 348 hex nuts are designed for high stress and high temperature environments. Available in sizes from M6 to M36, they are ideal for use in industrial equipment and nuclear reactors, providing exceptional strength and durability.

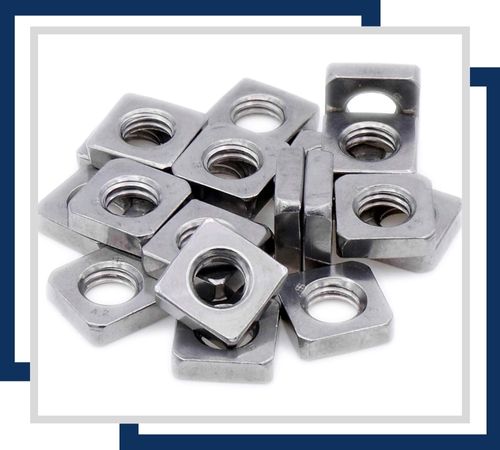

Stainless steel 348 square nuts provide large surface area for efficient torque application. Sizes range from M6 to M24, making it suitable for secure communications in hot environments, such as chemical applications and space applications.
Amer Stainless delivers quality Stainless Steel 348 Nuts with consistent performance, as tested under wide-ranging tests like hardness tests, spectro analysis, PMI, and flaring tests. In addition, micro and macro tests, pitting resistance, and IGC tests confirm that the nuts are of superior quality that we deliver. We ensure complete documentation, such as commercial invoices, packing lists showing net and gross weights, box numbers, and labels besides our testing protocols. Our legalized or attested Certificate of Origin along with Third-Party Inspection Certificates ensures our uncompromising commitment to delivering exceptional products and unparalleled customer satisfaction.
Stainless Steel 348 Nuts find their place in power generation, petrochemical plants, chemical processing equipment, and high-temperature industrial machinery. Their unique blend of corrosion resistance, mechanical strength, and thermal stability guarantees secure and long-lasting fastening in demanding applications. These nuts offer reliable, durable, and cost-effective solutions for essential industrial and engineering projects.
