Stainless Steel 405 Tubing is a top-notch ferritic stainless steel option crafted for situations where you need decent corrosion resistance, impressive heat resistance, and solid structural integrity. Thanks to its ferritic nature and added chromium, 405 tubing shines when it comes to resisting oxidation at high temperatures. This makes it a great fit for automotive exhaust parts, heat exchangers, and various industrial piping systems. Its robust nature guarantees dependable performance throughout both the manufacturing process and its final use.
The makeup of Stainless Steel 405 Tubing primarily includes iron and chromium, with a dash of titanium to help stabilize its microstructure and avoid sensitization. The chromium content lends moderate corrosion resistance and protection against oxidation at elevated temperatures, while the ferritic structure contributes to good thermal conductivity, dimensional stability, and mechanical strength. These tubes are a breeze to fabricate, weld, and bend, which makes them adaptable for a wide range of industrial and manufacturing tasks.
| Description | ASTM A240 / ASME SA240 Stainless Steel Plates, ASTM A240 Hot Rolled Stainless Steel Plates |
| Standard | ASTM, ASME, BS, DIN, EN |
| Material | 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L, |
| 302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S, 420, 430, 631, 904L, Duplex, etc | |
| Specification | Cold rolled: 1219mm * 2438mm (4′ x 8′), 1219mm * 3048mm (4′ x 10′), 1220mm * 2440mm, 1250mm * 2500mm or as your requirement.
Hot rolled: 1500mm * 2000mm, 1000mm * 3000mm, 1500mm * 4000mm, 1500m * 6000mm or as your requiremnt. |
| Technique | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Etc. |
| Surface | 2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Thickness | 0.25-200mm, 0.3mm to 120mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm |
| Package | Standard Export Seaworthy Package, or as required. |
| Value Added Services | Cladding,Heat Treatment,Annealed, Pickling, Polish,Rolling,Cutting,Bending,Forging,Minor Fabrication Etc. |
| MTC | Mill Test Certificate, Available as per EN 10204 3.1 |
| Element | Content (%) |
|---|---|
| Iron, Fe | 85 |
| Chromium, Cr | 13 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Aluminum, Al | 0.2 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.040 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 448 MPa | 65000 psi |
| Yield strength (@strain 0.200 %/) | 276 MPa | 40000 psi |
| Elastic modulus | 200 GPa | 29007 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 25.00% | 25.00% |
| Izod Impact (@20°C/68°F) | 41.0 J | 30.2 ft-lb |
| Hardness, Brinell (converted from Rockwell B hardness) | 131 | 131 |
| Hardness, Knoop (converted from Rockwell B hardness) | 146 | 146 |
| Hardness, Rockwell B | 75 | 75 |
| Hardness, Vickers (converted from Rockwell B hardness) | 140 | 140 |
Contact us to get a quick quote for your requirement.
We provides high-quality Stainless Steel 405 Tubing, strength tested, durable, and precise. All our products have undergone thorough testing in their chemical composition analysis, mechanical property assessments, and dimensional checks to provide optimal performance. All products are accompanied by certifications of compliance with industry standards and customer specifications.
Manufactured without welding, this tubing offers superior structural integrity and reliability. Commonly available in sizes ranging from 1/8″ to 2″ in diameter. It has moderate corrosion resistance suitable for many applications.
Produced by welding a flat steel strip into a tubular shape, this type is typically available in sizes from 1/4″ to 6″ in diameter. It has good resistance to oxidation and is used where cost-efficiency is essential.

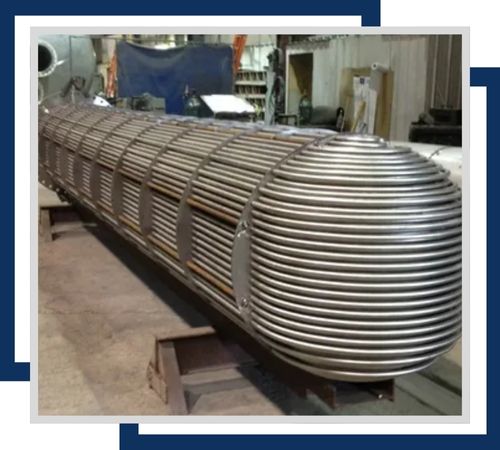

Designed specifically for heat exchanger applications, these tubes are available in diameters from 1/2″ to 2″. They provide good resistance to scaling and oxidation at high temperatures.

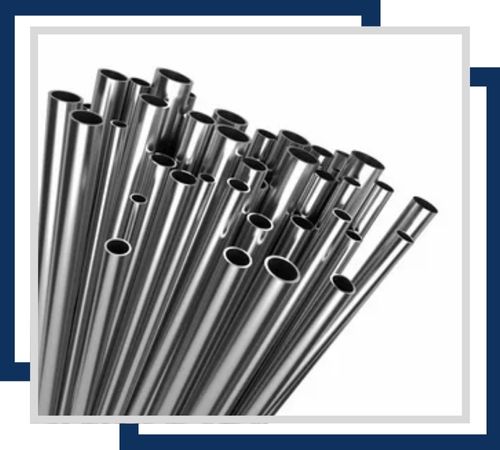

Precision-made for instrumentation purposes, this tubing usually comes in sizes from 1/16″ to 1″ in diameter. It offers excellent resistance to corrosion and is ideal for high-pressure applications.

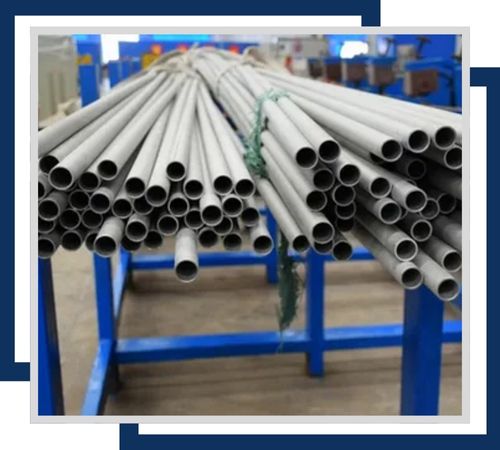

Ideal for boiler systems, these tubes are typically found in sizes from 1″ to 3″ in diameter. They are designed to handle high temperatures and pressures, with good resistance to corrosion.

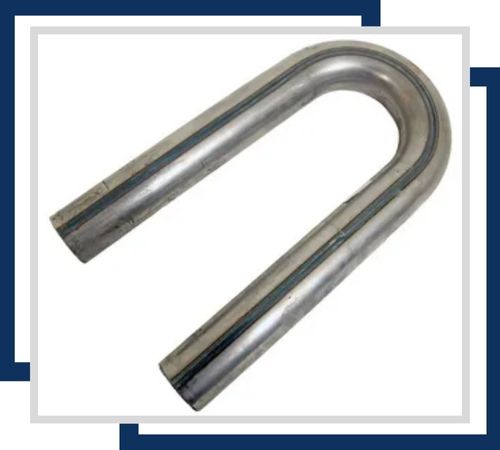

These U-shaped tubes are commonly used in heat exchangers and condensers. Sizes usually range from 1/2″ to 2″ in diameter. They provide good resistance to heat and corrosion.

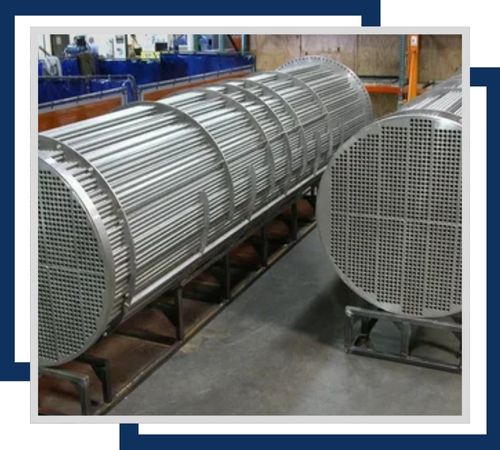

Used in condenser units, these tubes are generally available in diameters from 1/2″ to 2″. They offer excellent resistance to corrosion and high temperatures, making them suitable for various thermal applications.

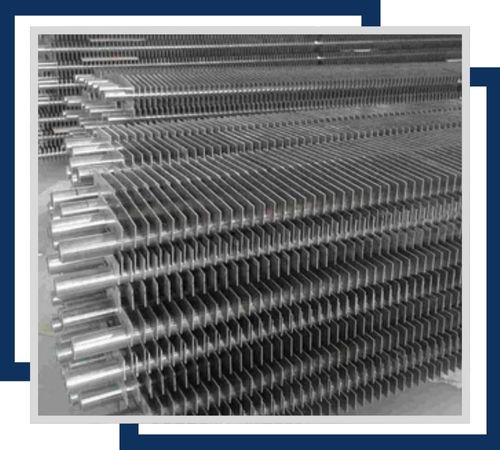

These tubes feature fins attached to increase surface area for heat transfer. They are typically available in diameters from 1/2″ to 2″. They offer good corrosion resistance and are used in heat exchangers and radiators.
You’ll find Stainless Steel 405 Tubing commonly used in automotive exhaust systems, heating units, industrial chimneys, ducting, and structural components that face high temperatures. Its blend of moderate corrosion resistance, thermal stability, and mechanical strength ensures it performs well over the long haul in environments that are both moderately corrosive and high-temperature. Stainless Steel 405 Tubing offers reliable, durable, and cost-effective solutions for automotive, industrial, and structural needs.
