Stainless Steel 410 Bars are robust martensitic stainless steel products crafted for situations that demand outstanding hardness, wear resistance, and a bit of corrosion protection. Being a martensitic grade, 410 can be heat-treated to enhance its mechanical properties, making these bars perfect for use in industrial machinery, automotive parts, valve stems, and structural applications where strength and durability are essential.
These bars are mainly made up of iron, chromium, and carbon, with chromium offering corrosion resistance and carbon enabling the bars to achieve impressive hardness through heat treatment. They boast excellent tensile strength, wear resistance, and dimensional stability, which makes them ideal for machining, forging, and fabricating components that face mechanical stress or moderate corrosive conditions.
| Specification | ASTM A479/ SA479 ASTM A276/ ASME SA276 |
|---|---|
| Grade | Stainless Steel 410 (UNS S41000) |
| Hex Bar size | 18 to 57mm (11/16″ – 2-3/4″) |
| Round bar size | OD 4mm to 500mm |
| Square bar size | 18mm to 47mm (11/16″- 1-3/4″) |
| Billet Size | 1/2″- 495mm Dia. |
| Rectangles Size | 33 x 30mm – 295 x 1066mm |
| Bright Bar | OD 4mm to 100mm |
| Tolerance | K12 H12, K10, H9, H11, H8, H13K9, H10, K11, or as per need |
| Flat bar size | 1/2” to 10” in thickness of 2 to 150mm |
| Angle bar size | 3*20*20~12*100*100 |
| Finish | centreless ground, Cold (bright) drawn, hot rolled, peeled, smooth turned, hot rolled annealed, slit rolled edge, Bright, Rough Turned, Grinding, Polish & Black |
| Form | Flat Bar, Hollow, Round, Square, Triangle, Rectangle, Half Round Bar, Rod, T-Bar, Precision Ground Bar, Hex (A/F), Blocks, Channel Bar, Threaded, Round Rod, Billet, Profiles, I/H Bar, Ingot, Rings, Forging etc. |
| Technique | 440C Stainless Steel Hot Rolled, Cold Drawn, Rod, Forged Round Bar, Cold Rolled |
| Condition | annealed, Hardened & tempered |
| Section | 3.0 -12.0 mm thickness, 80 x 40 to 150 x 75mm section |
| Channel Bar | 5.0 – 6.0mm thickness |
| Surface | Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Polished, Hairline |
| Hollow Bar | 32mm OD x 16mm ID – 250mm OD x 200mm ID |
| Grade | AISI | Stainless Steel Bolts & Nuts Chemical Composition (% maxima unless stated) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Mo | Ni | Cu | ||||||
| 410 | SS 410 | 0.09-0.15 | 1.0 | 1.0 | 0.05 | 0.03 | 11,5 – 14,0 | – | 1 | – | ||||
| Type | Tensile Strength | Yield Strength (0.2% offset) | Elongation in 2” (50.80mm) % | Hardness (Rockwell) | ||
|---|---|---|---|---|---|---|
| Ksi | MPa | Ksi | MPa | |||
| 410 | 70 | 483 | 45 | 310 | 25 | B80 |
Contact us to get a quick quote for your requirement.
We ensures that all 410 stainless steel panels are rigorously tested for quality, strength and durability. Each product is certified to appropriate industry standards, including mechanical components, corrosion resistance and finishes. These certifications assure reliable performance and compliance with global quality standards in industrial applications.

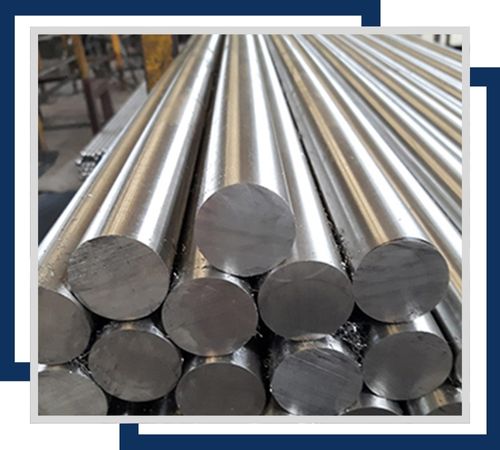

Corrosion-resistant and heat-treatable, Stainless Steel 410 Round Bars are available in diameters from 0.5″ to 12″. They are ideal for applications in cutlery, automotive parts, and industrial components requiring high hardness and moderate corrosion resistance.

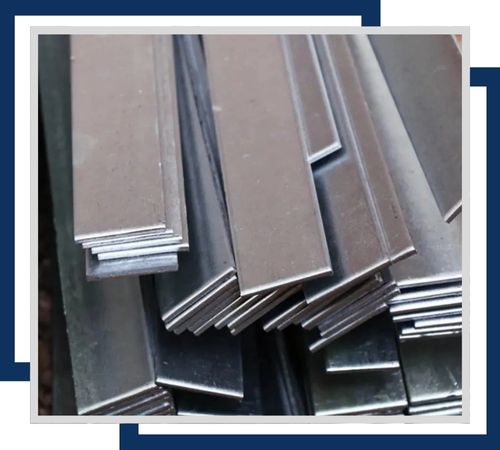

Stainless Steel 410 Flat Bars offer high strength and good machinability, with thicknesses from 0.25″ to 6″ and widths up to 12″. Suitable for manufacturing tools, hardware, and parts that need durability and wear resistance.

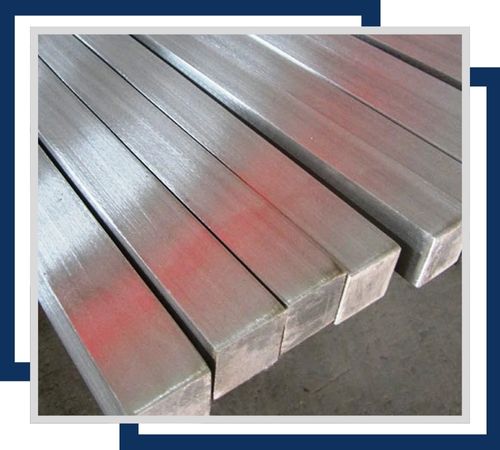

Corrosion-resistant Stainless Steel 410 Square Bars are available in sizes from 0.5″ to 6″ on each side. They are used in applications requiring high hardness and resistance to wear, such as in industrial machinery and components.

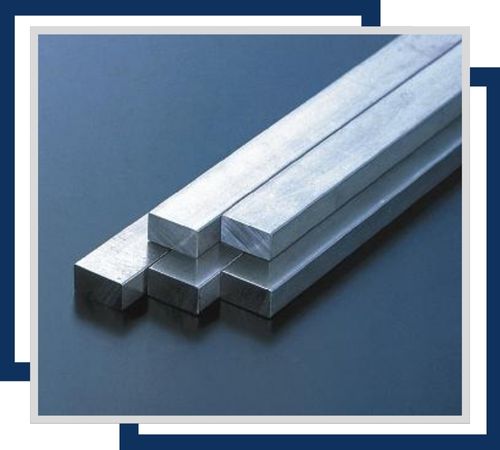

Stainless Steel 410 Rectangular Bars provide high strength and corrosion resistance, available in sizes from 0.5″ x 1″ to 6″ x 12″. Ideal for heavy-duty applications, including parts and tools that need excellent durability and wear resistance.

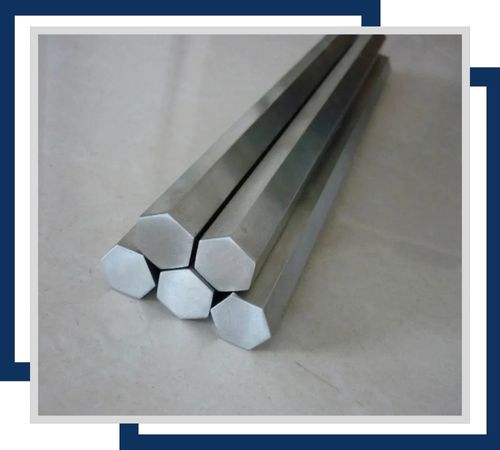

Offering good corrosion resistance and machinability, Stainless Steel 410 Hexagonal Bars come in sizes from 0.5″ to 4″ across flats. Suitable for use in hardware, machinery, and parts that require strength and durability.

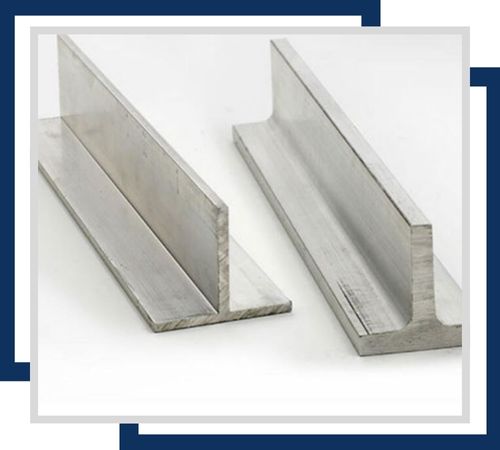

Corrosion-resistant Stainless Steel 410 T-Bars are available in dimensions from 0.5″ x 0.5″ to 6″ x 6″. They are ideal for structural and industrial applications where high hardness and wear resistance are needed.
Stainless Steel 410 Bars find their place in a variety of applications, including automotive parts, pumps, valve components, shafts, and industrial machinery. Their unique blend of hardness, mechanical strength, and moderate corrosion resistance guarantees reliable performance in tough environments. With Stainless Steel 410 Bars, you get a long-lasting, cost-effective, and trustworthy material solution for industrial, automotive, and structural needs.
