Stainless Steel 904L Sheet and Plates are top-tier materials crafted for situations that demand outstanding corrosion resistance, impressive strength, and lasting durability. As a super austenitic stainless steel, 904L stands out for its remarkable ability to withstand tough environments, including strong acids, chlorides, and sulfuric media. These sheets and plates find their place in industries where reliability and resistance to corrosion are paramount, delivering exceptional performance in marine, chemical, and high-purity processing settings.
Made from a blend of iron, high chromium, nickel, molybdenum, and copper, Stainless Steel 904L Sheet and Plates offer superior corrosion resistance compared to standard stainless steels. The elevated levels of nickel and molybdenum provide remarkable protection against pitting, crevice corrosion, and stress corrosion cracking, while the addition of copper boosts resistance to sulfuric and phosphoric acids. These plates are not only tough but also easy to weld and maintain mechanical stability across a broad temperature range, making them perfect for both structural and processing uses.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19 – 23 | 4 – 5 | 23 – 28 | 1 – 2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.

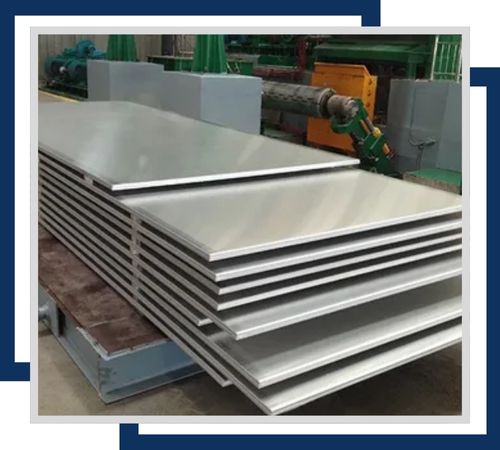

Stainless Steel 904L hot rolled sheets exhibit excellent corrosion resistance in aggressive conditions, such as acids and chlorides. Thicknesses range between 3mm to 25mm, while widths can be up to 2 meters in size. This sheet is employed in heavy-duty applications where robust structural integrity is demanded.

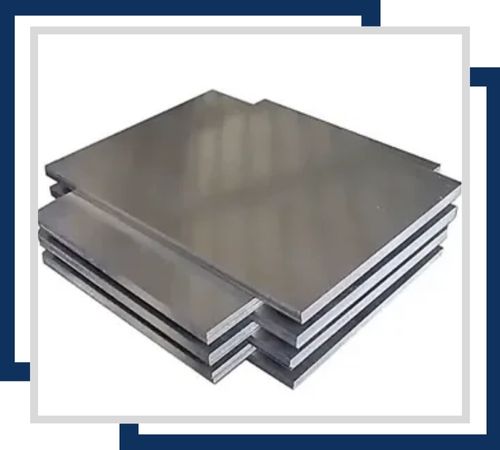

Stainless Steel 904L Cold Rolled Plates are alloyed with austenitic with excellent corrosion protection against strong acids and chlorides. These 904L sheets are available up to 0.5-3 mm, with widths ranging up to 1.5 meters. Plates are also featured with a highly smooth surface polish that can use for precise aesthetics.

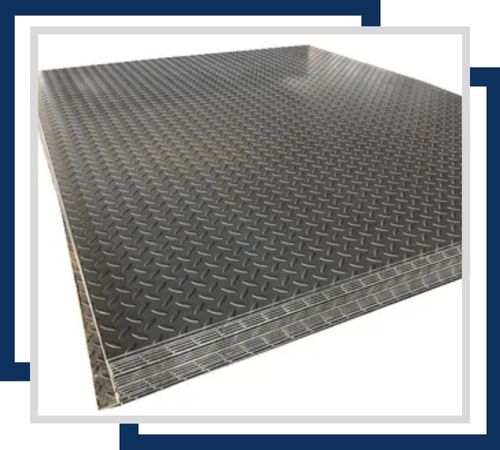

Stainless Steel 904L Chequered Sheets have a patterned surface that enhances slip resistance while maintaining excellent corrosion resistance. Available in common thicknesses of 2 mm to 6 mm and up to 1.2 meters in width, these sheets are ideal for flooring and other high-traction surfaces.

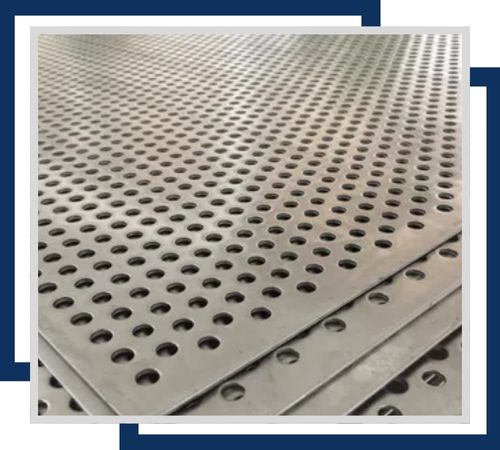

Stainless steel perforated plates from the 904L grade combine corrosion resistance with customized perforation patterns for ventilation and filtration. Thicknesses range from 1 mm to 8 mm, and the size up to 1.2 meters by 2.4 meters accommodates industrial and architectural applications.
Stainless Steel 904L Shim Sheets are excellent resistance to aggressive environments and precise thicknesses for the application. Normally available in a thickness range from 0.1 mm up to 3 mm and size up to 1 meter by 2 meters, these sheets are used for gap filling and alignment.

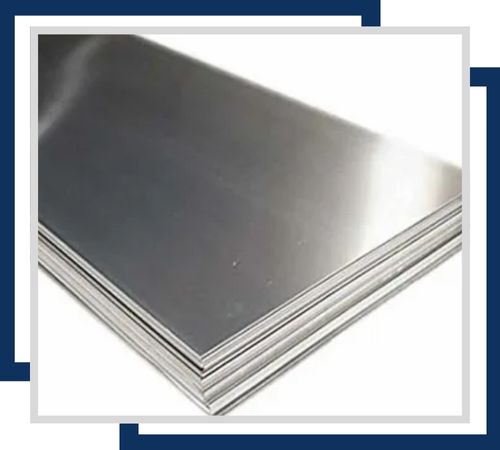

Stainless Steel 904L Polished Plates are known for their excellent finish and high corrosion resistance. They are very suitable for decorative and high-end applications. Thicknesses available are from 1 mm to 50 mm, and the maximum dimensions can go up to 2 meters by 6 meters, making them aesthetically pleasing and durable.
Amer Stainless is committed to providing an experience of excellence to all its customers who purchase our Premium Quality Stainless Steel 904L Sheets and Plates by providing complete documents. We send the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report, which certifies the originality and high quality of our products. To further boost the confidence of our clients, we provide the Stainless Steel 904L Sheets and Plates with a range of test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. We express our promising commitment to our customers in terms of satisfaction, and on going to evolve into excellence in product quality.
You’ll find Stainless Steel 904L Sheet and Plates in a variety of applications, including chemical processing plants, petrochemical industries, offshore structures, desalination systems, pharmaceutical equipment, and pollution control machinery. They’re particularly well-suited for fabricating tanks, heat exchangers, pressure vessels, piping systems, and structural components that are exposed to harsh chemicals or saline conditions. With their exceptional corrosion resistance, mechanical strength, and reliability, Stainless Steel 904L Sheet and Plates are a go-to choice for demanding industrial and engineering projects.
